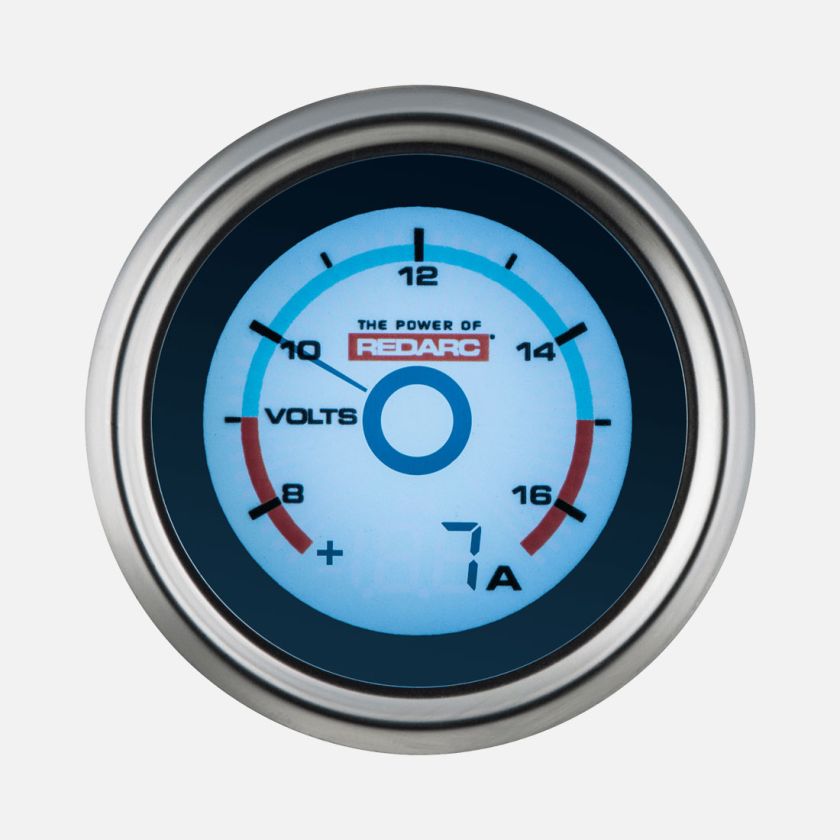

The REDARC Single Voltage 2-1/16 inch Monitoring Gauge enables LED/LCD display charge performance monitoring of either the main or auxiliary battery of 4WDs, campers, caravans, motorhomes, and similar vehicles. It provides a visualization of charging performance and battery health. If there is an alternator or system failure, the voltage reading will be low and drop as the battery discharges. In the case of an overcharge condition, the gauge will climb above its normal zone.

There are pre-set alert levels below 9 volts and above 16 volts to notify you of these changes by altering the gauge backlight to either amber or red. The G52-VA will also notify you with a beep when the vehicle ignition is on. The G52-VA comes equipped with an optional 100A-rated current display. This monitors the amount of current to or from your main or auxiliary battery. To equip the gauge with this functionality, purchase the REDARC Hall Effect Current Sensor GS-AMPS.

The gauge is made of satin chrome bezel and comes with 13 backlight color options. The display illuminates with park lights turned on so you can check battery health without turning on the ignition. To enhance the lighting of the G52-VA, REDARC recommends purchasing the Enhanced Lighting Controller GA-ELC.

• LED/LCD display for battery monitoring
• Pre-set alert levels for voltage changes
• Optional 100A current display with sensor
• 13 backlight color options
• Satin chrome bezel design
